13.0mm L M5 Open End Cylindrical Head Rivet Nut with Serration

Name: 13.0mm L M5 Open End Cylindrical Head Rivet Nut with Serration
Brand: Ornit USA
SKU: PSE-e5f480
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-e5f480

High-quality 13.0mm L M5 Open End Rivet Nut with Serration for secure fastening in steel, with flat cylindrical head design.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

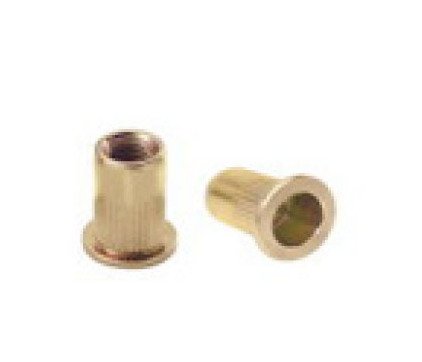

The P-Series 13.0mm Dimension L and M5 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration offers exceptional durability and performance. Crafted from high-quality steel with a yellow zinc plated finish, this rivet nut ensures a secure grip range between 1.5mm to 2.5mm. Its cylindrical head design provides a flat surface for efficient fastening. Compatible with a 7.1mm hole size and offering versatile dimensions, this rivet nut is also available in stainless steel and aluminum variants. Ideal for various applications where reliability and strength are paramount.

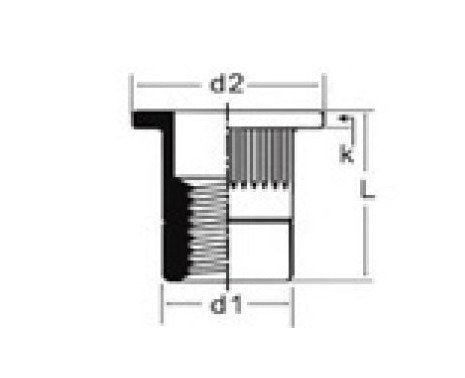

Product Specifications

Dimensions Dimension D1

7.0 mm

Dimensions Dimension D2

10.3 mm

Dimensions Dimension K

1.0 mm

Dimensions Dimension L

13.0 mm

Dimensions Hole Size

7.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

13.0mm L M5 Open End Cylindrical Head Rivet Nut with Serration
