13.0mm M5 Open End Cylindrical Head Rivet Nut
13.0mm M5 Open End Cylindrical Head Rivet Nut
SKU:PSE-67a76e
High-quality 13.0mm M5 Open End Cylindrical Head Rivet Nut for secure and flush fit in various applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
13.0mm M5 Open End Cylindrical Head Rivet Nut
$14.99
Quantity: 1
Claim Your Seller Account
13.0mm M5 Open End Cylindrical Head Rivet Nut
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

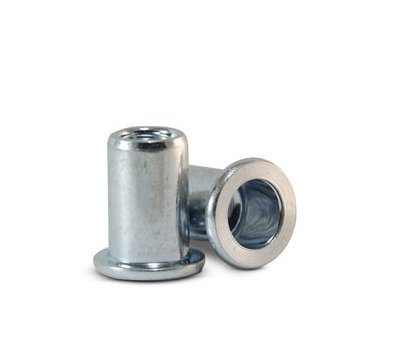

The 13.0mm M5 Open End Cylindrical Head Rivet Nut from the P-Series is a high-quality fastening solution designed for a secure grip range of 1.5mm to 2.5mm. Made of steel with a yellow zinc plated finish, this rivet nut guarantees durability and corrosion resistance. Its flat cylindrical head design ensures a flush fit, ideal for various applications. Available in stainless steel and aluminum, with serration style options, this rivet nut offers versatility to meet specific requirements.
Product Specifications

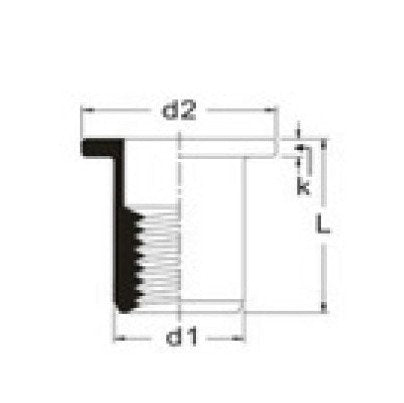

Dimensions Dimension D1
7.0 mm
Dimensions Dimension D2
10.3 mm
Dimensions Dimension K
1.0 mm
Dimensions Dimension L
13.0 mm
Dimensions Hole Size
7.1 mm
Dimensions Maximum Grip Range
2.5 mm
Dimensions Minimum Grip Range
1.5 mm
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M5
