13-2 Series Circuit Board Support
13-2 Series Circuit Board Support
SKU:01C-fc1d46
Reliable 13-2 Series Circuit Board Support for .062 PCB x .125 Chassis. RoHS compliant, Nylon 66 material, temperature range -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13-2 Series Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
13-2 Series Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

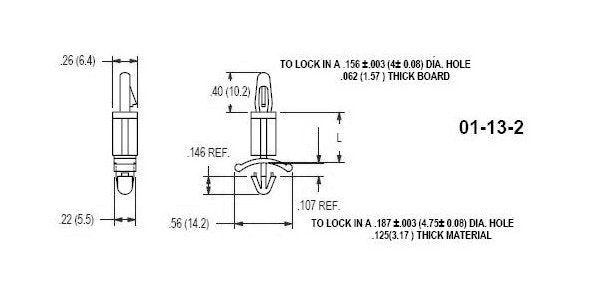

The 13-2 Series Circuit Board Support is designed for .062 thick PCBs and .125 thick chassis, offering a secure lock fit into both PCBs and chassis. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and has a temperature range of -40 to 185F (-40 to 85C). It comes in a packaging of 500 supports per bag. With dimensions of 1.25 inches (31.8 mm) and specific board and chassis thicknesses, this support ensures stability and reliability in electronic assemblies.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
1.25 (31.8) inches (mm)
