13-2 Series Circuit Board Supports
13-2 Series Circuit Board Supports
SKU:01C-5faba3
Securely mount .062 Thick PCBs & .125 Thick Chassis boards with 13-2 Series supports. Durable Nylon material, UL94V-2 compliant, RoHS certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13-2 Series Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
13-2 Series Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

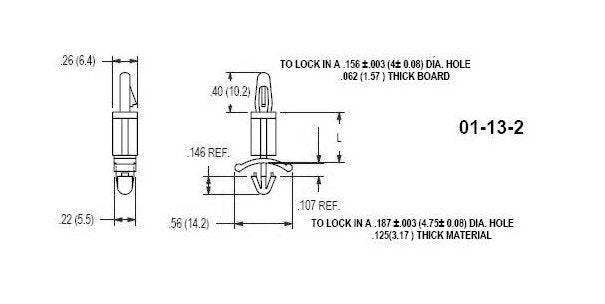

The 13-2 Series Circuit Board Supports are designed to securely hold .062 Thick PCBs and .125 Thick Chassis boards in place. Made from Nylon 66 UL94V-2 material, these supports offer high durability and temperature resistance (-40 to 185F). Each support features a .156 Board Hole for PCBs and a .187 Chassis Hole for easy installation. Compliant with UL94V-2 standards, ASTM D 4066, PA111, and RoHS regulations, these supports ensure a reliable and safe mounting solution for electronic assemblies.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
1.00 (25.4) inches (mm)
