13-2 Series Circuit Board Supports - Nylon 66
13-2 Series Circuit Board Supports - Nylon 66
SKU:01C-1311b8
Secure your PCBs and chassis with our durable 13-2 Series Circuit Board Supports, crafted from Nylon 66 material. RoHS compliant and ideal for diverse temperature conditions.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13-2 Series Circuit Board Supports - Nylon 66
$29.99
Quantity: 1
Claim Your Seller Account
13-2 Series Circuit Board Supports - Nylon 66
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

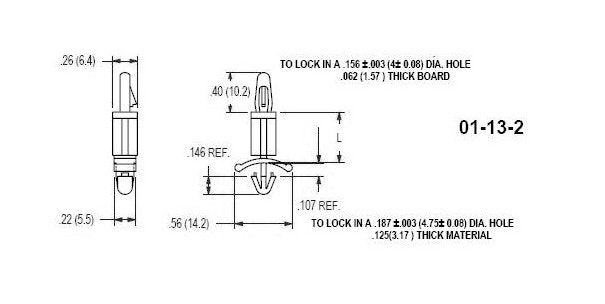

The 13-2 Series Circuit Board Supports are designed for .062 inch thick PCBs and .125 inch thick chassis, ensuring secure placement and stability. Made of Nylon 66 UL94V-2 material, these supports are durable and RoHS compliant. With precise dimensions of 1.38 inches in length, these supports fit seamlessly into your assembly. Suitable for a wide temperature range (-40 to 185F), these supports guarantee reliability in various environments.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
1.38 (34.9) inches (mm)
