13-3 Series Circuit Board Support
13-3 Series Circuit Board Support
SKU:01C-195dee
Securely support .093-inch thick PCBs with the 13-3 Series Circuit Board Supports. RoHS compliant and temperature-resistant (-40 to 185°F).
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
13-3 Series Circuit Board Support
$39.99
Quantity: 1
Claim Your Seller Account
13-3 Series Circuit Board Support
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

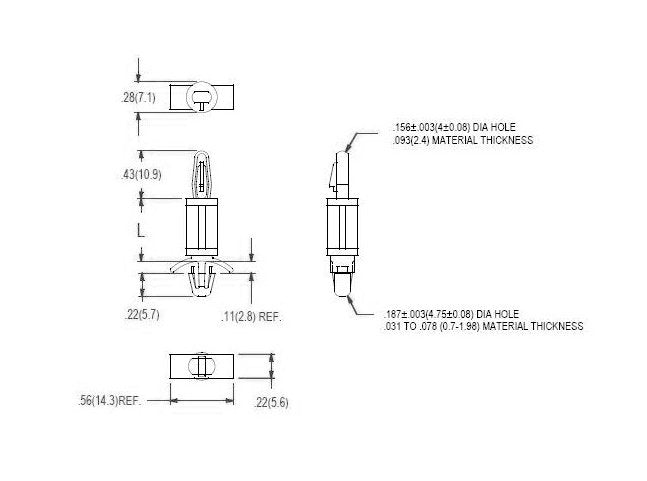

The 13-3 Series Circuit Board Support is designed for .093-inch thick PCBs, with a .156-inch board hole and .187-inch chassis hole, ensuring secure assembly and stability. Made of Nylon 66 UL94V-2 material, this support is RoHS compliant and can withstand temperatures ranging from -40 to 185°F (-40 to 85°C). Each pack contains 1000 supports, ideal for bulk PCB production and assembly processes. The precise dimensions and durable construction make it a reliable choice for maintaining integrity in electronic systems.
Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.031 - .078 (.7-1.98) inches (mm)
Specifications Dim L 015
.312 (7.9) inches (mm)
