13-3 Series Circuit Board Support
13-3 Series Circuit Board Support
SKU:01C-e547d5
Reliable 13-3 Series Circuit Board Support for .093-inch PCBs. RoHS compliant, Nylon 66 material, ASTM D 4066 standards. Pack of 1000.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13-3 Series Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
13-3 Series Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

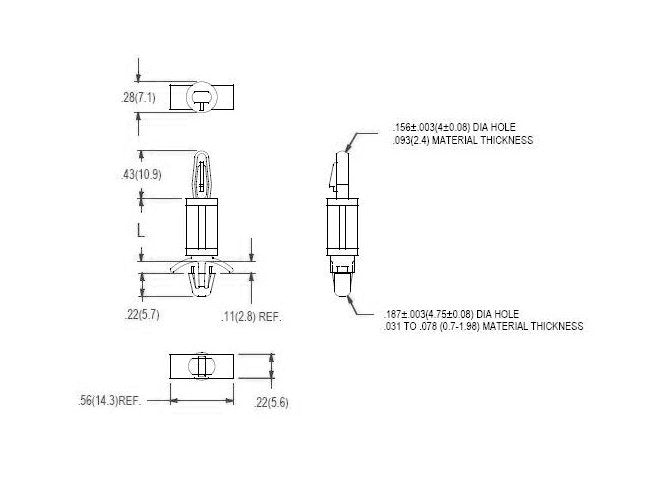

The 13-3 Series Circuit Board Support is designed for hassle-free installation and reliable support of .093-inch thick PCBs. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet ASTM D 4066, PA111 standards and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), they ensure stability in various environments. The support features a .156-inch board hole and a .187-inch chassis hole, providing precision and durability for secure mounting. Each pack contains 1000 supports, ideal for institutional and consumer applications.
Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.031 - .078 (.7-1.98) inches (mm)
Specifications Dim L 015
.500 (12.7) inches (mm)
