13-3 Series Circuit Board Support with .093 Thick PCB

Name: 13-3 Series Circuit Board Support with .093 Thick PCB
Brand: All Electronics Hardware
SKU: 01C-291889
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-291889

Secure and stabilize .093 thick PCBs with the 13-3 Circuit Board Support. Made from Nylon 66 UL94V-2, RoHS compliant, and compatible with .187 chassis holes.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 13-3 Series Circuit Board Support is a reliable solution for securing .093 thick PCBs with precision and stability. Each support is meticulously crafted from Nylon 66 UL94V-2 material, ensuring durability and safety in intricate electronic setups. With a temperature range of -40 to 185°F (-40 to 85°C), this support offers consistent performance in diverse operating conditions. Measuring .875 inches in length and compatible with .187 chassis holes, this support guarantees a secure fit and seamless integration into circuit board assemblies. Meeting RoHS compliance standards, ASTM D 4066, and PA111 requirements, this circuit board support exemplifies quality and reliability in every aspect of its design.

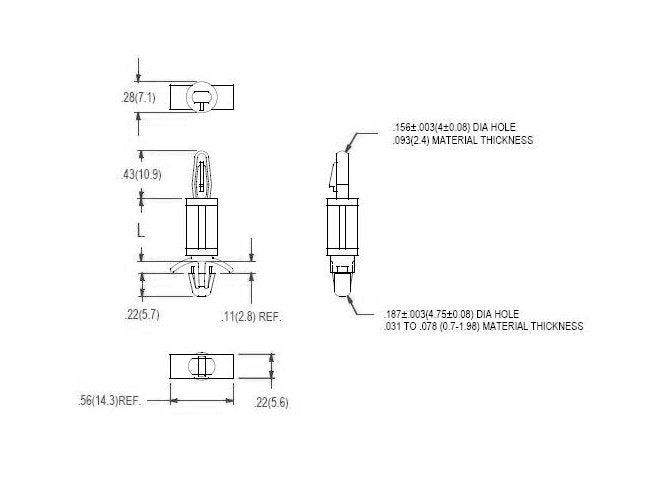

Product Specifications

Specifications Board Thickness

.093 (2.4) inches (mm)

Specifications Chassis Thickness

.031 - .078 (.7-1.98) inches (mm)

Specifications Dim L 015

.875 (22.2) inches (mm)

13-3 Series Circuit Board Support with .093 Thick PCB
