13.5V DC Wall Plug Switch Mode Power Supply with Interchangeable Input Plug

Name: 13.5V DC Wall Plug Switch Mode Power Supply with Interchangeable Input Plug
Brand: Triad Magnetics
SKU: WAL-5a1e97
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-5a1e97

Versatile 13.5V DC Wall Plug Switch Mode Power Supply with Level VI Efficiency & Interchangeable Input Plug

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

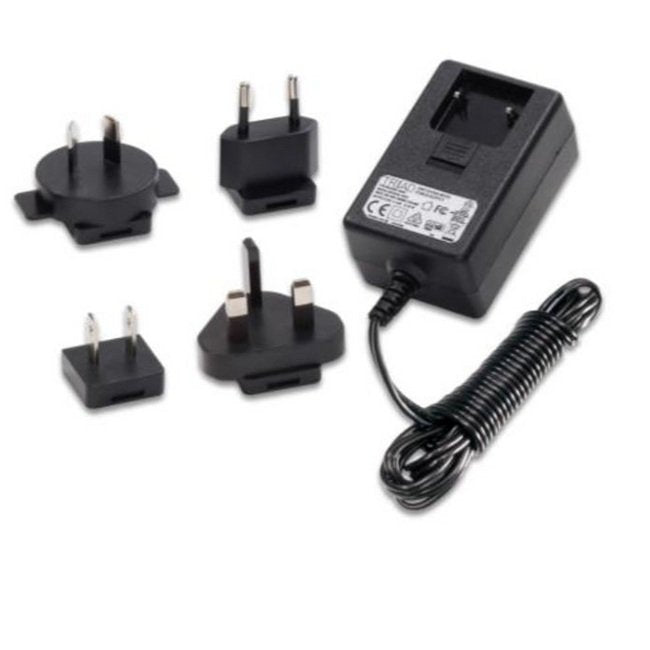

The 13.5V DC Wall Plug Switch Mode Power Supply is a versatile solution designed for a wide range of applications, featuring a positive polarity center and interchangeability for input plugs. With an input voltage range of 100-240V AC, this power supply delivers a stable output voltage of 13.5V DC at 1.77A, ensuring reliable performance. Its compact dimensions make it ideal for space-constrained environments. Certified with Level VI efficiency and compliant with industry standards, this power supply is a reliable choice for consumer electronics and institutional use.

Product Specifications

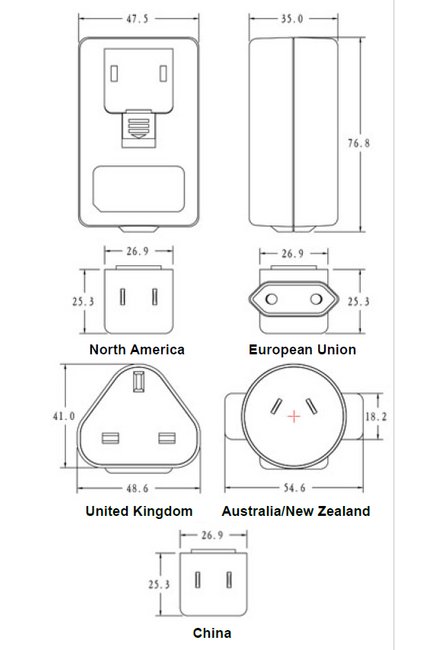

Case Dimensions Depth D

1.38 in | 35.00 mm

Case Dimensions Height H

3.02 in | 76.80 mm

Case Dimensions Width W

1.87 in | 47.50 mm

Electrical Specifications At 25 Degree Celsius C Temperature Inp

50 to 60 Hz

Electrical Specifications At 25 Degree Celsius C Temperature Out

1.77 A

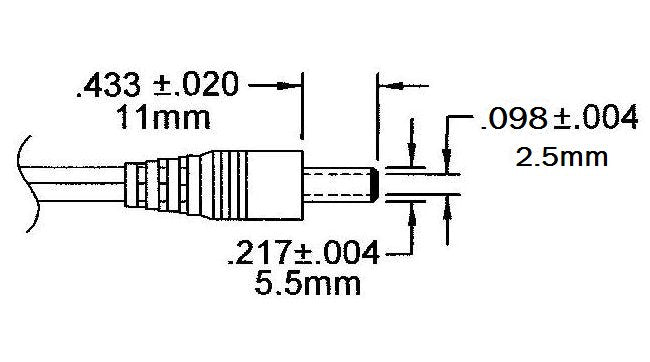

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Polarity Center

Positive

Specifications Type

Switchmode

13.5V DC Wall Plug Switch Mode Power Supply with Interchangeable Input Plug
