13.5V Wall Plug-In Switch Mode Power Supply
13.5V Wall Plug-In Switch Mode Power Supply
SKU:WAL-92f5b7
Enhance product design efficiency with our 13.5V Switch Mode Power Supply, ensuring stable and regulated power output for safer and quieter operation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13.5V Wall Plug-In Switch Mode Power Supply
$29.99
Quantity: 1
Claim Your Seller Account
13.5V Wall Plug-In Switch Mode Power Supply
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

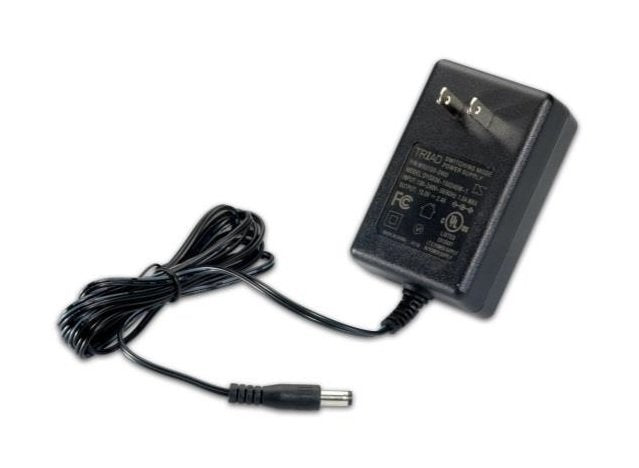

The 13.5V Wall Plug-In Switch Mode Power Supply by Triad simplifies product design by providing a compact power source that eliminates the need for internal cooling devices. With regulated output voltage, this power supply ensures stability under varying loads. Meeting EIAS 2007 energy efficiency requirements, it offers a safe and efficient solution for various applications. The enclosed design enhances safety and prevents tampering, making it ideal for both consumer and institutional use.

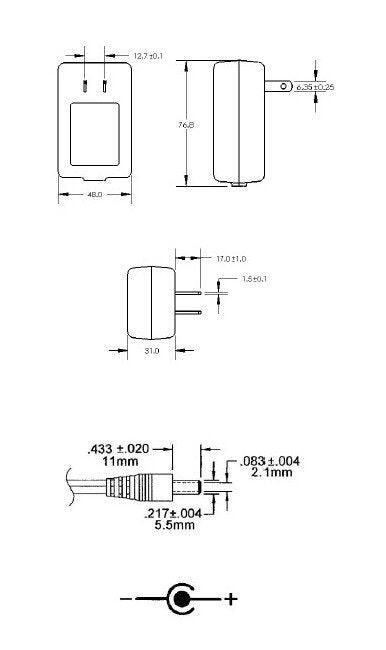

Product Specifications
Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm
Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
11.88 W
Specifications Output Current
0.88 A
Specifications Output Current Dc
0.88 A
Specifications Output Voltage Dc
13.5 V
Specifications Polarity Center
Positive
Specifications Type
Switchmode
