13-6 Series Circuit Board Support
13-6 Series Circuit Board Support
SKU:01C-cc892f
Sturdy Circuit Board Support for .093" PCBs & .078-.140" Thick Chassis, Pack of 1000, Nylon 66 Material, RoHS Compliant
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
13-6 Series Circuit Board Support
$39.99
Quantity: 1
Claim Your Seller Account
13-6 Series Circuit Board Support
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 13-6 Series Circuit Board Support is designed for .093-inch thick PCBs and chassis ranging from .078 to .140 inches thick. Each pack contains 1000 pieces made of Nylon 66 UL94V-2 material, with UL File No: E70062 and RoHS compliance. With a temperature range of -40 to 185F (-40 to 85C), these supports offer reliable stability for your circuit boards while meeting ASTM D 4066 and PA111 standards.

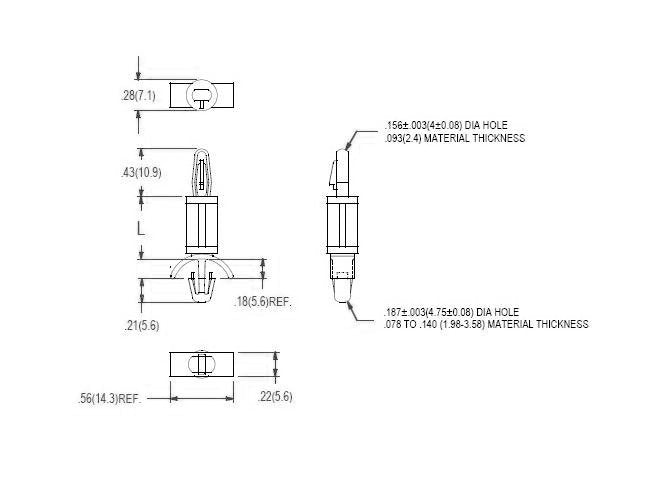

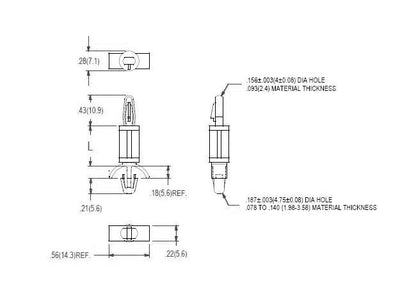

Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.078-.140 (1.98-3.58) inches (mm)
Specifications Dim L 015
.437 (11.1) inches (mm)
