13-6 Series Circuit Board Support
13-6 Series Circuit Board Support
SKU:01C-abe14a
Durable circuit board support for .093 thick PCB and .078-.140 thick chassis. RoHS compliant with ASTM standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
13-6 Series Circuit Board Support
$24.99
Quantity: 1
Claim Your Seller Account
13-6 Series Circuit Board Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

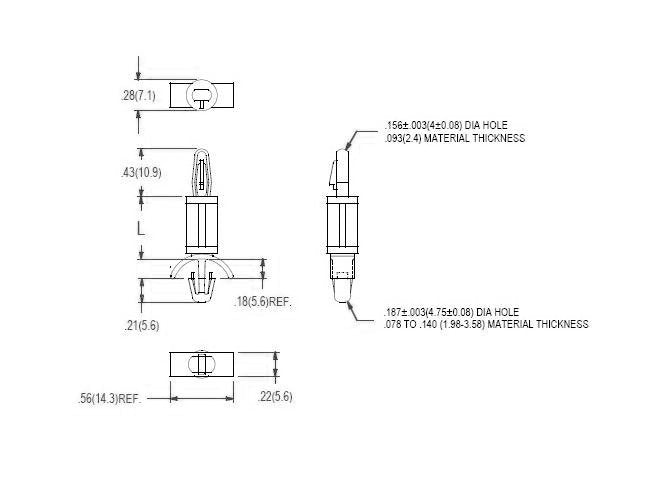

The 13-6 Series Circuit Board Support is designed to securely hold circuit boards with a .093-inch thickness and chassis with a .078-.140-inch thickness. Made of Nylon 66 UL94V-2 material, this support ensures high durability and reliability. It meets ASTM D 4066 and PA111 standards and is RoHS compliant, making it ideal for various applications. With a temperature range of -40 to 185°F (-40 to 85°C), this support is suitable for diverse environmental conditions.
Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.078-.140 (1.98-3.58) inches (mm)
Specifications Dim L 015
.625 (15.9) inches (mm)
