13-6 Series Circuit Board Support - Nylon 66 UL94V-2

Name: 13-6 Series Circuit Board Support - Nylon 66 UL94V-2
Brand: All Electronics Hardware
SKU: 01C-ef69a7
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-ef69a7

Get durable support for .093 PCBs & .078-.140 chassis with 13-6 Series Circuit Board Support. Nylon 66 UL94V-2, RoHS compliant, ASTM D 4066, PA111 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

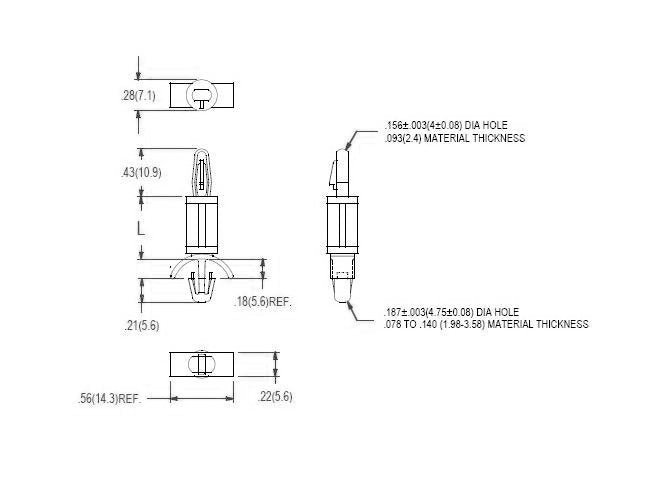

The 13-6 Series Circuit Board Support is designed for .093 thick PCBs and .078-.140 thick chassis, offering reliable support and stability. Made of Nylon 66 UL94V-2 material with the option to upgrade to UL94V-0, this support meets ASTM D 4066 and PA111 standards, ensuring durability and safety. With a temperature range of -40 to 185F (-40 to 85C), this support is RoHS compliant, making it suitable for a wide range of applications in electronic assemblies.

Product Specifications

Specifications Board Thickness

.093 (2.4) inches (mm)

Specifications Chassis Thickness

.078-.140 (1.98-3.58) inches (mm)

Specifications Dim L 015

.500 (12.7) inches (mm)

13-6 Series Circuit Board Support - Nylon 66 UL94V-2
