13-7 Series Circuit Board Support
13-7 Series Circuit Board Support
SKU:01C-9e30ed
Nylon 66 Circuit Board Support for .062 PCBs with .031-.078 chassis thickness. RoHS compliant, ASTM D 4066, PA111 standards. Temp range -40 to 185F.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
13-7 Series Circuit Board Support
$49.99
Quantity: 1
Claim Your Seller Account
13-7 Series Circuit Board Support
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

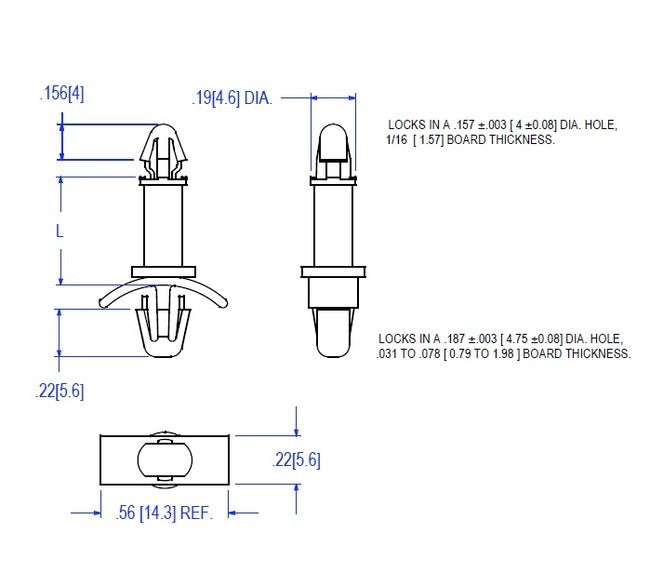

The 13-7 Series Circuit Board Support is designed for .062 thick PCBs and .031-.078 thick chassis. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and meets ASTM D 4066, PA111 standards. With a temperature range of -40 to 185F, it ensures sturdy and reliable PCB mounting for various applications. Each pack contains 1000 supports, providing ample quantity for projects requiring circuit board stability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.031-.078 (.8-2) inches (mm)
Specifications Dim L 015
.750 (19.1) inches (mm)
