13-7 Series Circuit Board Support
13-7 Series Circuit Board Support
SKU:01C-3b1fcc
Sturdy circuit board supports for .062 PCBs & .031-.078 chassis. Pack of 1000. RoHS compliant & ASTM D 4066, PA111 standards. Temp range: -40 to 185F.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
13-7 Series Circuit Board Support
$39.99
Quantity: 1
Claim Your Seller Account
13-7 Series Circuit Board Support
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

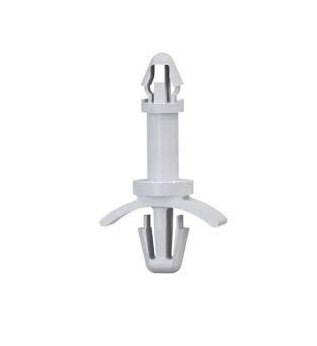

The 13-7 Series Circuit Board Support is designed for .062 thick PCBs and .031-.078 thick chassis, providing stability and durability for electronic assemblies. Each pack includes 1000 supports made from Nylon 66 UL94V-2 material (UL94V-0 available). This product complies with ASTM D 4066, PA111 standards, is RoHS compliant, and has a temperature range of -40 to 185F (-40 to 85C), ensuring reliability in various environments.

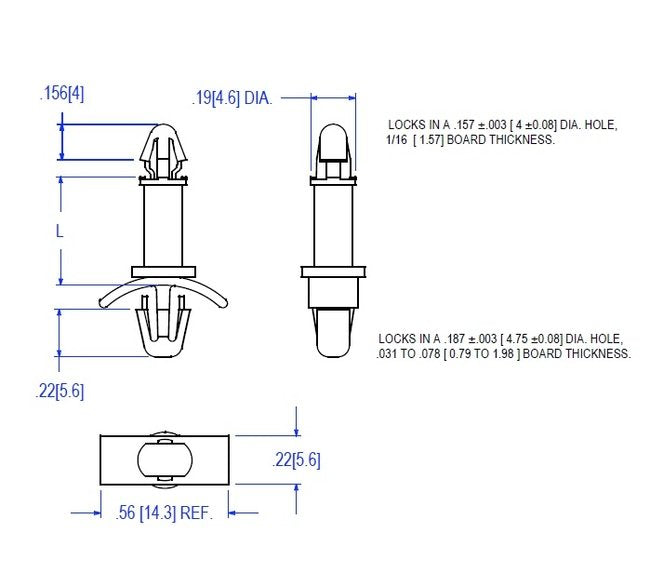

Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.031-.078 (.8-2) inches (mm)
Specifications Dim L 015
.437 (11.1) inches (mm)
