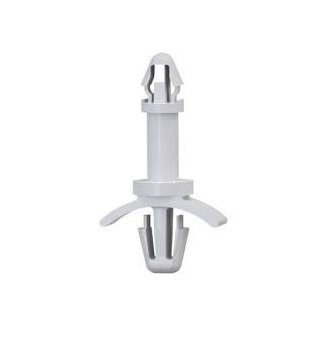

13-7 Series Circuit Board Support
13-7 Series Circuit Board Support
SKU:01C-57a4e8
Sturdy circuit board support for .062 PCB & .031-.078 chassis, Nylon 66 UL94V-2 material, RoHS compliant, ASTM D 4066
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
13-7 Series Circuit Board Support
$49.99
Quantity: 1
Claim Your Seller Account
13-7 Series Circuit Board Support
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 13-7 Series Circuit Board Support is specifically designed to accommodate a .062 thick PCB and a chassis ranging from .031 to .078 inches in thickness. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this durable support ensures stability and protection for your circuit boards. With a temperature range of -40 to 185°F (-40 to 85°C), it offers reliable performance in varied environments. Each pack contains 1000 supports, meeting ASTM D 4066 and PA111 standards, and is RoHS compliant for environmental safety.

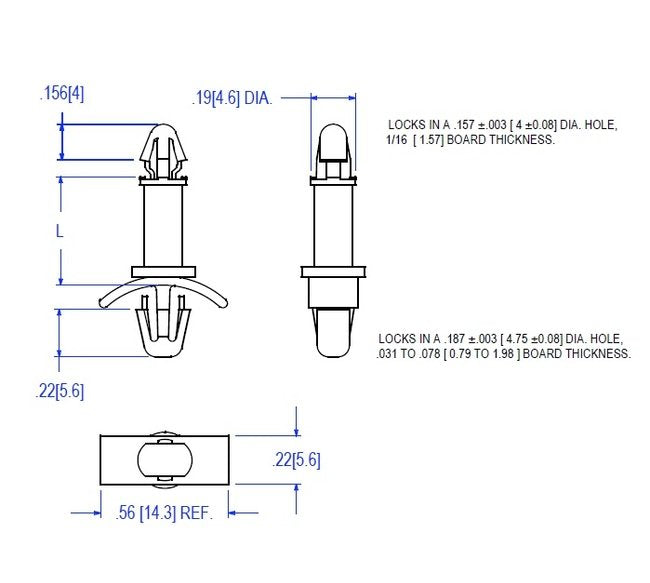

Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.031-.078 (.8-2) inches (mm)
Specifications Dim L 015
.375 (9.5) inches (mm)
