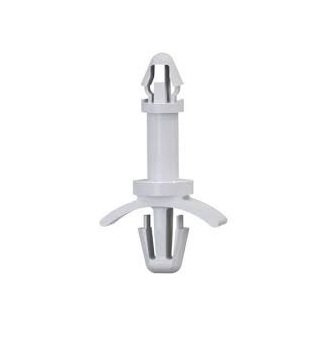

13-7 Series Circuit Board Support
13-7 Series Circuit Board Support
SKU:01C-90bd40
Secure your PCBs with the 13-7 Series Circuit Board Support. RoHS compliant, durable Nylon 66 construction. Pack of 1000 supports.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13-7 Series Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
13-7 Series Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

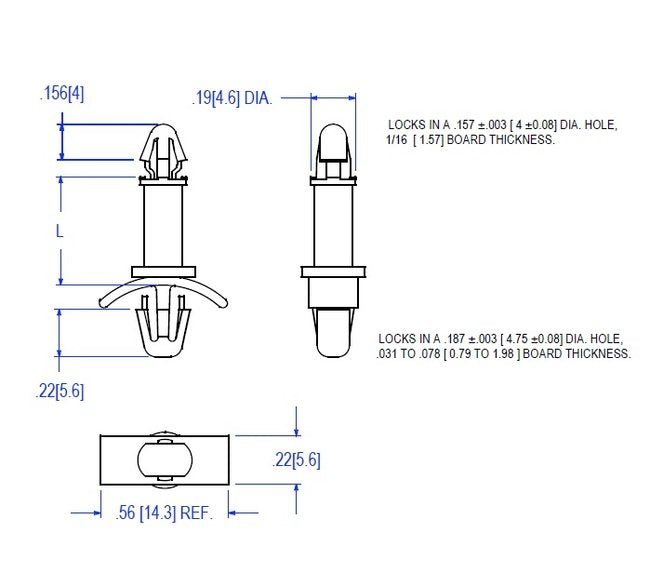

The 13-7 Series Circuit Board Support is a must-have component for secure PCB installations. Designed for .062 thick PCBs and chassis thickness ranging from .031 to .078 inches, this support ensures stability and longevity. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066, PA111 standards and is RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), it offers durability in various environments. Each pack contains 1000 supports, providing cost-effective solutions for your projects.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.031-.078 (.8-2) inches (mm)
Specifications Dim L 015
.500 (12.7) inches (mm)
