13-7 Series Circuit Board Support with Nylon 66 Material

Name: 13-7 Series Circuit Board Support with Nylon 66 Material
Brand: All Electronics Hardware
SKU: 01C-c65824
Price: 59.99 USD
Availability: OutOfStock

SKU:01C-c65824

Durable 13-7 Series Circuit Board Support for .062 thick PCBs and .031-.078 thick chassis. RoHS compliant, temperature resistant -40 to 185F.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

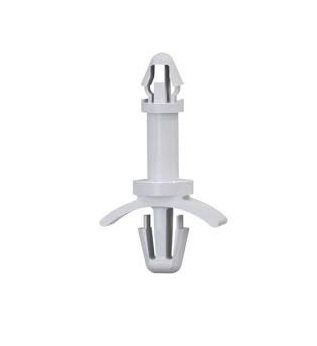

The 13-7 Series Circuit Board Support is designed to securely hold .062 thick PCBs and .031-.078 thick chassis for reliable electronic assemblies. Each support is made from durable Nylon 66 material, ensuring stability and longevity in diverse applications. This pack of 1000 supports is RoHS compliant and meets ASTM standards for superior quality. With a temperature range of -40 to 185F (-40 to 85C), these supports are ideal for a wide range of environments.

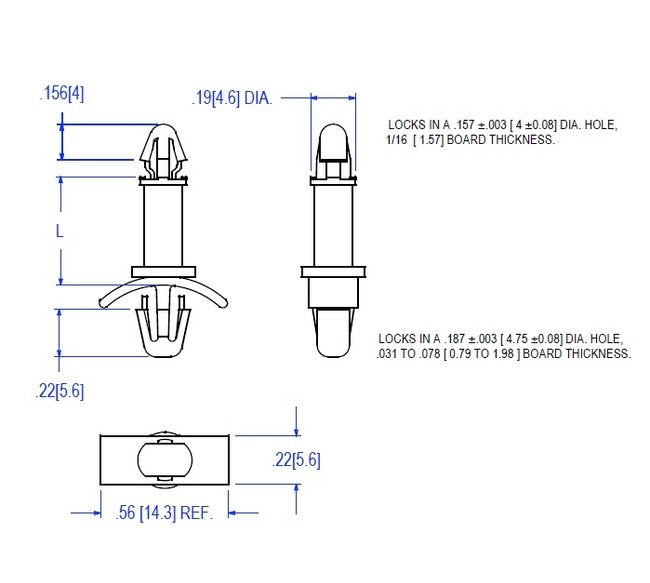

Product Specifications

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Thickness

.031-.078 (.8-2) inches (mm)

Specifications Dim L 015

1.375 (34.9) inches (mm)
