13-7 Series Circuit Board Supports
13-7 Series Circuit Board Supports
SKU:01C-a58083
Durable Circuit Board Supports for precise mounting. RoHS compliant with wide temp range. Ideal for .062 PCBs & .031-.078 chassis.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13-7 Series Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
13-7 Series Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

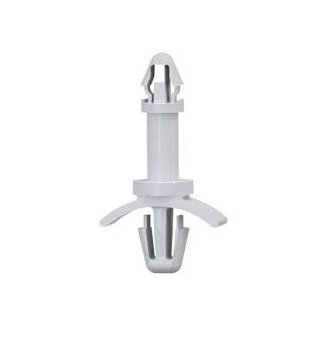

The 13-7 Series Circuit Board Supports are designed to provide sturdy support for .062-inch thick PCBs and .031-.078-inch thick chassis. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports are durable and RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), they offer reliable performance in various environments. Measuring 1.00 inch in length with precise dimensions, these supports ensure secure mounting for your electronic components.

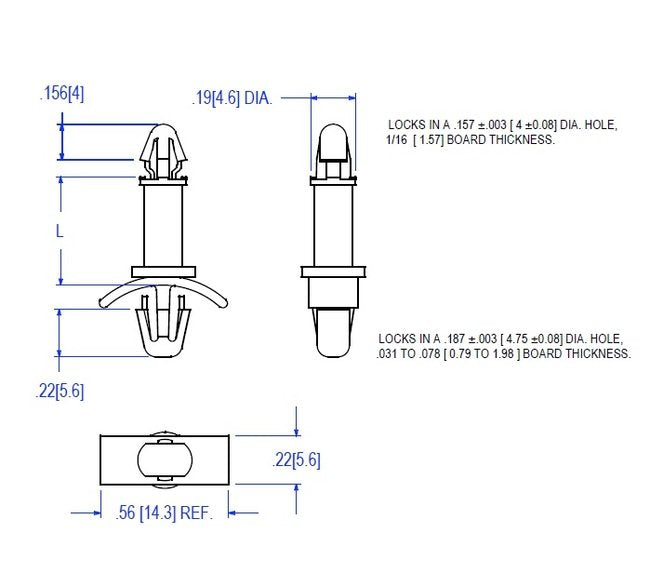

Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.031-.078 (.8-2) inches (mm)
Specifications Dim L 015
1.00 (25.4) inches (mm)
