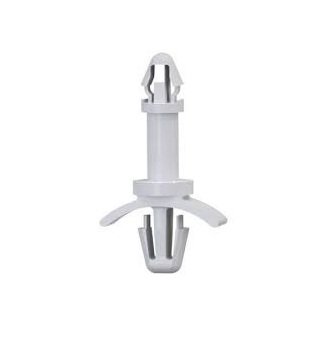

13-7 Series Circuit Board Supports - Nylon 66 UL94V-2

Name: 13-7 Series Circuit Board Supports - Nylon 66 UL94V-2
Brand: All Electronics Hardware
SKU: 01C-5a7345
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-5a7345

Securely hold PCBs & chassis with 13-7 Series Supports. Durable Nylon 66 UL94V-2 material, ASTM D 4066 & PA111 compliant. Temp range -40 to 185F.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 13-7 Series Circuit Board Supports are designed to securely hold .062 thick PCBs and .031-.078 thick chassis in place, providing reliable support for electronic components. Made of Nylon 66 UL94V-2 material (UL94V-0 optional), these supports ensure durability and safety. With a temperature range of -40 to 185F (-40 to 85C), they perform consistently even in challenging environments. ASTM D 4066 and PA111 compliant, these supports meet industry standards for quality and reliability, making them ideal for a wide range of applications.

Product Specifications

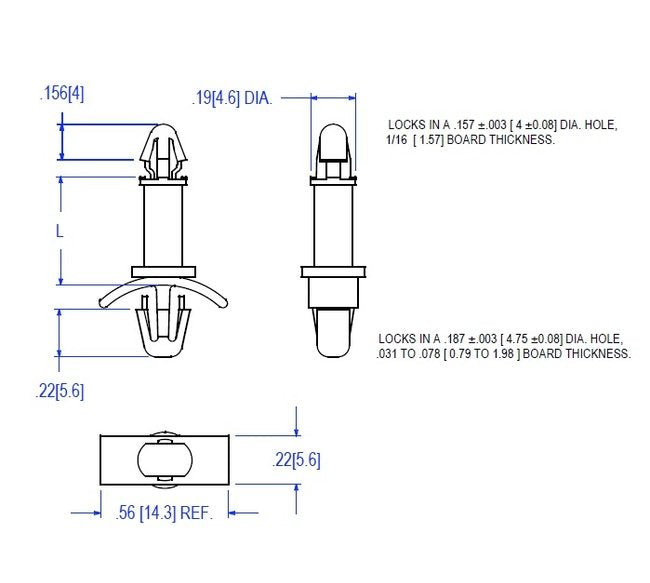

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Thickness

.031-.078 (.8-2) inches (mm)

Specifications Dim L 015

.312 (7.9) inches (mm)

13-7 Series Circuit Board Supports - Nylon 66 UL94V-2
