13-8 Series: .156 Board Hole Circuit Board Support

Name: 13-8 Series: .156 Board Hole Circuit Board Support
Brand: All Electronics Hardware
SKU: 01C-775a08
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-775a08

Sturdy circuit board supports for .062 thick PCBs & .008-.055 thick chassis holes. RoHS compliant. Pack of 1000.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

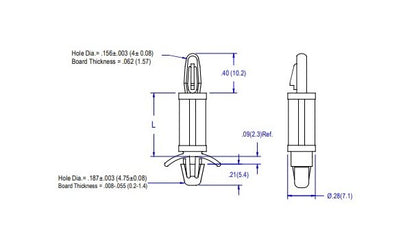

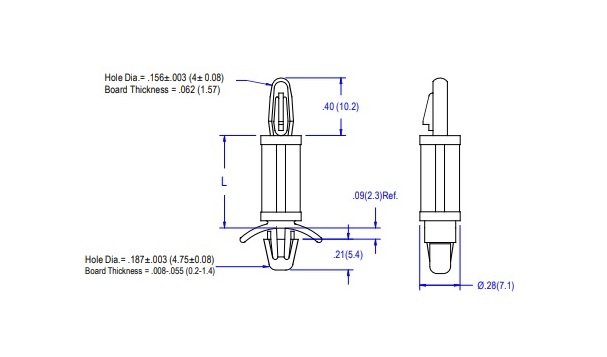

The 13-8 Series Circuit Board Support is designed to securely hold .062 thick PCBs with ease while accommodating chassis holes ranging from .008 to .055 thick. Each pack contains 1000 supports made of durable Nylon 66 UL94V-2 material (UL94V-0 available upon request). These supports meet ASTM D 4066, PA111 standards, are RoHS compliant, and have a temperature range of -40 to 185F (-40 to 85C). Ensure stability and precision in your electronic assemblies with these reliable circuit board supports.

Product Specifications

Specifications Board Thickness

.062(1.6) inches (mm)

Specifications Chassis Thickness

.008-.055 (.2-1.4) inches (mm)

Specifications Dim L 015

.500 (12.7) inches (mm)

13-8 Series: .156 Board Hole Circuit Board Support
