13-8 Series Circuit Board Support: .156 Board Hole, .062 Thick PCB, UL94V-2 Nylon Material

Name: 13-8 Series Circuit Board Support: .156 Board Hole, .062 Thick PCB, UL94V-2 Nylon Material
Brand: All Electronics Hardware
SKU: 01C-c49e05
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-c49e05

Durable 13-8 Series Circuit Board Support for .062 Thick PCBs & .008-.055 Thick Chassis, ASTM & RoHS Compliant

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 13-8 Series Circuit Board Support is designed for .062 thick PCBs with .008-.055 thick chassis applications, offering reliable support and stability. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), this support is ASTM D 4066 and PA111 compliant, ensuring durability and safety. With a temperature range of -40 to 185F (-40 to 85C), it provides consistent performance in various environments, making it ideal for electronics and industrial applications.

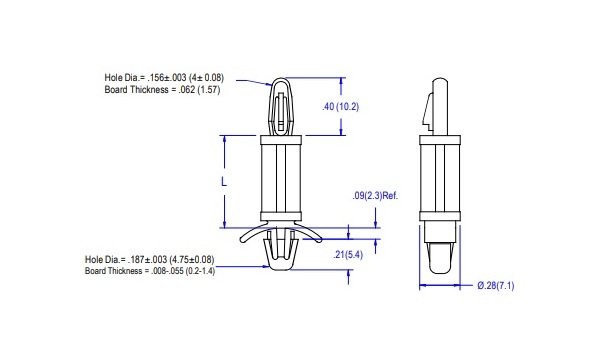

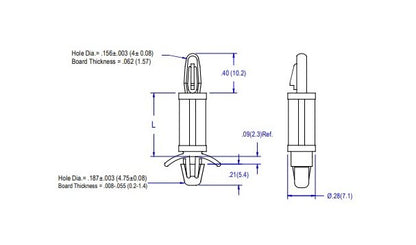

Product Specifications

Specifications Board Thickness

.062(1.6) inches (mm)

Specifications Chassis Thickness

.008-.055 (.2-1.4) inches (mm)

Specifications Dim L 015

.437 (11.1) inches (mm)
