13-8 Series Circuit Board Support with .156 Board Hole

Name: 13-8 Series Circuit Board Support with .156 Board Hole
Brand: All Electronics Hardware
SKU: 01C-ff95d2
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-ff95d2

Securely mount .062 thick PCBs with our 13-8 Series Circuit Board Support for reliable performance and compliance with ASTM and RoHS standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

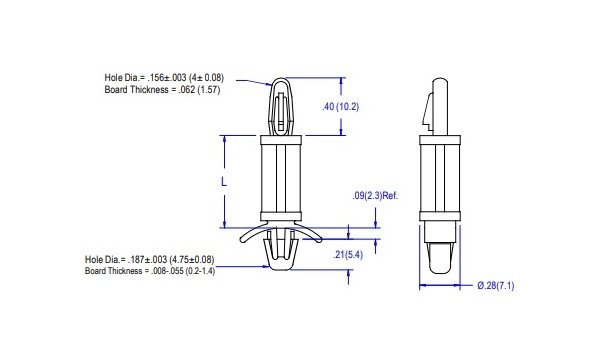

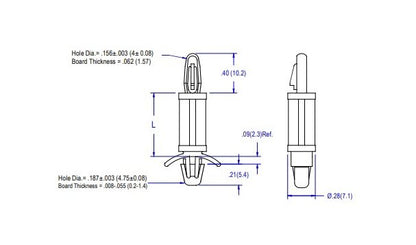

The 13-8 Series Circuit Board Support is designed for easy installation of .062 thick PCBs with a chassis thickness ranging from .008 to .055 inches. Made from durable Nylon 66 UL94V-2 material (UL94V-0 available), this PCB support ensures secure mounting and protection. With ASTM D 4066 and PA111 certifications, RoHS compliance, and a temperature range of -40 to 185F (-40 to 85C), it meets stringent industry standards for quality and safety.

Product Specifications

Specifications Board Thickness

.062(1.6) inches (mm)

Specifications Chassis Thickness

.008-.055 (.2-1.4) inches (mm)

Specifications Dim L 015

1.125 (28.6) inches (mm)

13-8 Series Circuit Board Support with .156 Board Hole
