13 Series Circuit Board Support: .156 Board Hole x .187 Chassis Hole

Name: 13 Series Circuit Board Support: .156 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-7f8f94
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-7f8f94

Enhance circuit board support with 13 Series Locking Top Style for .062 thick PCB & chassis. Nylon 66 UL94V-2 material, ASTM D 4066, PA111, RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your circuit board support with the 13 Series Locking Top Style support specifically designed for .062 thick PCB and chassis. Made from Nylon 66 UL94V-2 material with enhanced durability, this support ensures secure mounting for your electronic components. Each pack contains 500 supports, offering exceptional value while meeting ASTM D 4066, PA111 standards and RoHS compliance. Operating within a temperature range of -40 to 185F (-40 to 85C), these supports guarantee stability and longevity for your applications.

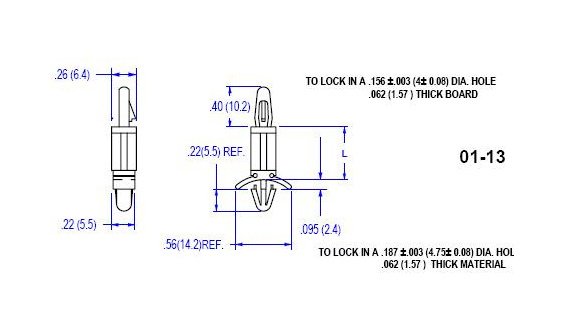

Product Specifications

Specifications Board Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Chassis Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

.187 (4.8) inches (mm)

Specifications Material Code

UL94V-2
