13 Series Circuit Board Support: .156 Board Hole x .187 Chassis Hole

Name: 13 Series Circuit Board Support: .156 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-bf0b47
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-bf0b47

Secure and durable 13 Series Circuit Board Support for .062 thick PCBs and chassis. RoHS compliant, temperature-resistant, pack of 500.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

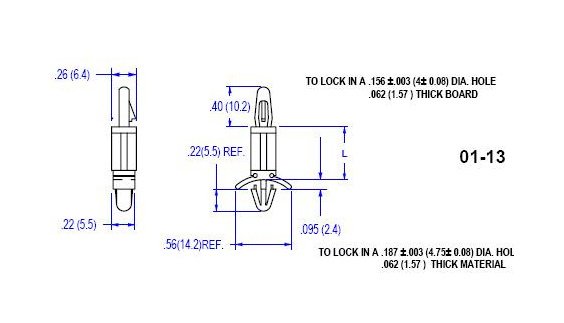

The 13 Series Circuit Board Support (PCB) is designed with a locking top style to securely hold .062 thick PCBs and chassis. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and can withstand temperature ranges from -40 to 185F (-40 to 85C). Each pack includes 500 units, making it ideal for bulk applications in various electronic setups. Ensure stability and durability for your circuit boards with this precision-engineered support.

Product Specifications

Specifications Board Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Chassis Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

.250 (6.4) inches (mm)

Specifications Material Code

UL94V-2

13 Series Circuit Board Support: .156 Board Hole x .187 Chassis Hole
