13 Series Circuit Board Support - .156 Board Hole x .187 Chassis Hole
13 Series Circuit Board Support - .156 Board Hole x .187 Chassis Hole
SKU:01C-165f45
Boost circuit stability with our 13 Series Circuit Board Support. Nylon 66 UL94V-2 material. RoHS compliant, ASTM D 4066, PA111. Pack of 500.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
13 Series Circuit Board Support - .156 Board Hole x .187 Chassis Hole
$39.99
Quantity: 1
Claim Your Seller Account
13 Series Circuit Board Support - .156 Board Hole x .187 Chassis Hole
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

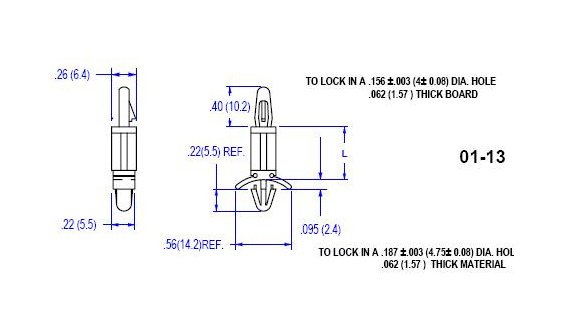

Enhance stability and protection for your circuits with our 13 Series Circuit Board Support. This Locking Top Style support is designed for .062 thick PCBs and chassis. Made of Nylon 66 UL94V-2 material, it ensures durability and safety. RoHS compliant and with a temperature range of -40 to 185F, this support meets stringent industry standards like ASTM D 4066 and PA111. Opt for UL94V-0 material by adding 'X' to the part number for enhanced fire safety. Packaging includes 500 pieces per bag.
Product Specifications
Specifications Board Thickness
.031 - .063 (.8 - 1.6) inches (mm)
Specifications Chassis Thickness
.031 - .063 (.8 - 1.6) inches (mm)
Specifications Color
Natural
Specifications Dim L
.500 (12.7) inches (mm)
Specifications Material Code
UL94V-2
