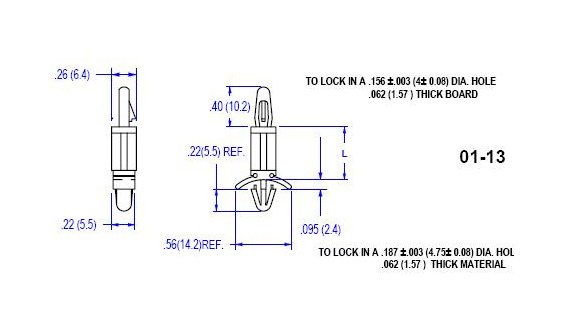

13 Series Circuit Board Support - .156" Board Hole x .187" Chassis Hole

Name: 13 Series Circuit Board Support - .156" Board Hole x .187" Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-341c61
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-341c61

Reliable 13 Series Circuit Board Support - Perfect for .062" PCBs & chassis. RoHS compliant, ASTM certified.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 13 Series Circuit Board Support offers superior PCB support with a locking top design suitable for .062" thick PCBs and .062" thick chassis. Made from Nylon 66 UL94V-2 material, this support is RoHS compliant and operates within a temperature range of -40 to 185F (-40 to 85C). Each pack contains 500 pieces, ensuring ample supply for your project needs. Upgrade to UL94V-0 by adding an 'X' to the part number for enhanced fire safety. Trust in the ASTM D 4066 and PA111 certifications for quality assurance.

Product Specifications

Specifications Board Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Chassis Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

1.25 (31.8) inches (mm)

Specifications Material Code

UL94V-2

13 Series Circuit Board Support - .156" Board Hole x .187" Chassis Hole
