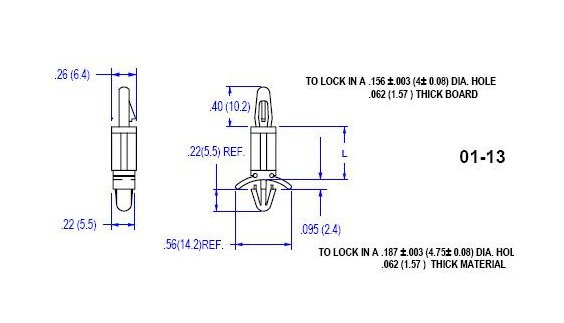

13 Series Circuit Board Supports: .156 Board Hole x .187 Chassis Hole

Name: 13 Series Circuit Board Supports: .156 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-92a2fc
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-92a2fc

Secure and durable 13 Series Circuit Board Supports for .062 thick PCBs and chassis. RoHS compliant with ASTM standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 13 Series Circuit Board Supports are designed for enhanced stability and durability in supporting circuit boards. Featuring a locking top style, these supports are specifically engineered for .062 thick PCBs and .062 thick chassis, providing a secure fit and reliable performance. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet ASTM D 4066 and PA111 standards, ensuring superior quality and safety. RoHS compliant and capable of operating in temperatures ranging from -40 to 185F (-40 to 85C), these supports are ideal for a wide range of applications.

Product Specifications

Specifications Board Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Chassis Thickness

.031 - .063 (.8 - 1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

1.38 (34.9) inches (mm)

Specifications Material Code

UL94V-2

13 Series Circuit Board Supports: .156 Board Hole x .187 Chassis Hole
