13 Series Circuit Board Supports - Locking Top Style
13 Series Circuit Board Supports - Locking Top Style
SKU:01C-530727
Durable 13 Series Circuit Board Support with locking top design for secure PCB mounting. RoHS compliant, ASTM D 4066, and PA111 certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13 Series Circuit Board Supports - Locking Top Style
$29.99
Quantity: 1
Claim Your Seller Account
13 Series Circuit Board Supports - Locking Top Style
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

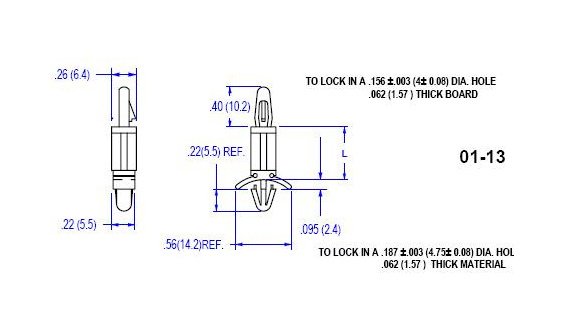

The 13 Series Circuit Board Support features a locking top design, suitable for .062 thick PCBs and chasses. Made of Nylon 66 UL94V-2 material (UL94V-0 available upon request), this support is RoHS compliant and can withstand temperatures ranging from -40 to 185F (-40 to 85C). Each pack contains 500 supports, ensuring reliable PCB mounting. ASTM D 4066 and PA111 compliant, this support is an ideal choice for secure and durable circuit board installations in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Thickness
.031 - .063 (.8 - 1.6) inches (mm)
Specifications Chassis Thickness
.031 - .063 (.8 - 1.6) inches (mm)
Specifications Color
Natural
Specifications Dim L
.750 (19.1) inches (mm)
Specifications Material Code
UL94V-2
