13 Series Nylon Circuit Board Support
13 Series Nylon Circuit Board Support
SKU:01C-8a9935
Secure and durable 13 Series Circuit Board Support for .062 thick PCBs and chassis. RoHS compliant. Ideal for electronic assemblies.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
13 Series Nylon Circuit Board Support
$14.99
Quantity: 1
Claim Your Seller Account
13 Series Nylon Circuit Board Support
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

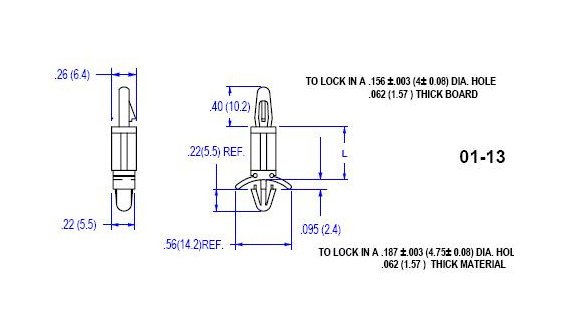

Enhance your PCB assembly with the 13 Series Locking Top Style Circuit Board Support designed for .062 thick PCBs and chassis. Made from Nylon 66 UL94V-2 material, this support offers reliability and durability in temperatures ranging from -40 to 185F. Compliant with RoHS standards, ASTM D 4066, and PA111, this support ensures safe and secure mounting for your electronic components.
Product Specifications
Specifications Board Thickness
.031 - .063 (.8 - 1.6) inches (mm)
Specifications Chassis Thickness
.031 - .063 (.8 - 1.6) inches (mm)
Specifications Color
Natural
Specifications Dim L
1.12 (28.6) inches (mm)
Specifications Material Code
UL94V-2
