The 130-6 Series Large Flow-Through Bypass Plug is a versatile solution for gravity bypassing or bypass pumping applications. Featuring a nominal size of 8 to 10 inches, this plug offers a bypass diameter of 4 inches MNPT and can be used within a range of 7.25 to 10.25 inches. With a maximum back pressure of 11 psi, this plug is designed for reliable performance. Its lightweight aluminum construction, multi-size adaptability, and interchangeable flanges make it a durable and flexible choice for various setups. The removable tire valve allows for easy replacement, ensuring convenience and efficiency in operations.
Product Specifications

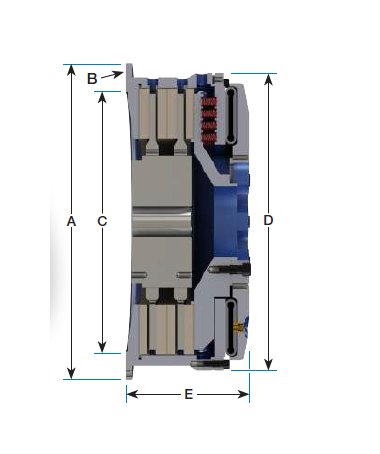

Dimensions Diameter B Metric Mounting
18.0 mm
Dimensions Dimension A Imperial Mounting
21.248 in | 539.70 mm
Dimensions Dimension A Metric Mounting
540.00 mm
Dimensions Dimension A Tolerance Imperial Mounting
+0.000 mm | -0.003 mm | +0.00 in | -0.08 in
Dimensions Dimension A Tolerance Metric Mounting
+0.00/-0.08 mm
Dimensions Dimension B Diameter Imperial Mounting
21/32 in
Dimensions Dimension B Hole Circle Imperial Mounting
20.00 in | 508.0 mm
Dimensions Dimension C Imperial Mounting
16.253 in | 412.83 mm
Dimensions Dimension C Metric Mounting H7
412.75 mm
Dimensions Dimension C Tolerance Imperial Mounting
+0.00 mm | -0.08 mm | +0.000 in | -0.003 in
Dimensions Dimension D
16-1/4 in | 414.0 mm
Dimensions Dimension E Ductile Slotted Center Plate
8.25 in | 209.55 mm
Dimensions Dimension E Ventilated Center Plate
8.19 in | 208.03 mm
Dimensions Hole Circle B Metric Mounting
510.0 mm
Dimensions Maximum Bore Range
4.20 in | 106.7 mm
Dimensions Minimum Bore Range
2.13 in | 54.1 mm
Dimensions Quantity Imperial Mounting
12
Dimensions Quantity Metric Mounting
12
Features Features
Available in hydraulic or pneumatic releaseHigh cycle lifePredictable preventative maintenanceSolid, slotted, or ventilated center plate optionsAvailable with Full Marine Corrosion Protection packageCompatible with the Power Performance LI upgradeType approval certification available: DNV, ABS, ATEX
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.
Specifications Lining Area
230 in² | 1500 cm²
Specifications Maximum Slip Speed
1080 rpm
Specifications Maximum Speed Hub And Center Plate Cp
2140 rpm
Specifications Note For Static Torque Rating At Minimum Release
Dynamic (slipping) Torque is 75% of the Static Torque.
Specifications Static Torque Rating At 60 Pound Force Per Square
21500 lbf·in | 2430 N·m
Specifications Static Torque Rating At 75 Pound Force Per Square
26800 lbf·in | 3030 N·m
Specifications Static Torque Rating At 90 Pound Force Per Square
32200 lbf·in | 3640 N·m
Weight And Inertia Hub And Center Plate Cp Inertia
9.9 lb·ft² | 0.42 kg·m²
Weight And Inertia Hub And Center Plate Cp Weight
65 lb | 30 kg
Weight And Inertia Total Weight
330 lb | 150 kg
