The 136-0 Series 48 Inch Maximum Diameter Municipal Style Kevlar® Reinforced Rubber Plug is engineered for efficient pipe sealing in municipal applications. Featuring a 4 Inch By-Pass Size and durable Petersen® construction, this plug accommodates pipe diameters ranging from 23 to 48 inches. With a maximum pipeline head of 16 ft and a required inflation pressure of 22 psig, this plug ensures secure sealing while adhering to industry safety recommendations. Ideal for municipal maintenance and repair projects, this plug combines reliability, strength, and ease of use.
Product Specifications

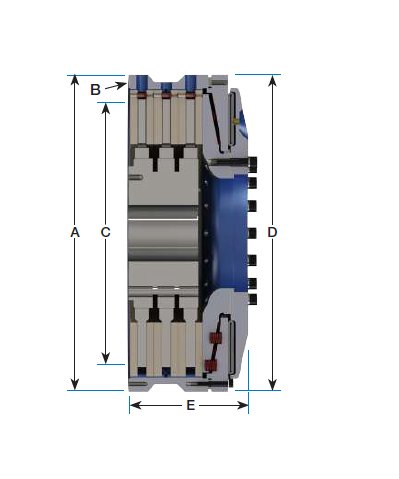

Dimensions Diameter B Metric Mounting
26.0 mm
Dimensions Dimension A Imperial Mounting
56.750 in | 1441.45 mm
Dimensions Dimension A Metric Mounting
1600.00 mm
Dimensions Dimension A Tolerance Imperial Mounting
+0.000 mm | -0.003 mm | +0.00 in | -0.08 in
Dimensions Dimension A Tolerance Metric Mounting
+0.00/-0.08 mm
Dimensions Dimension B Diameter Imperial Mounting
1 Inch (in)-8 Normally Closed (NC)
Dimensions Dimension B Hole Circle Imperial Mounting
54.00 in | 1371.6 mm
Dimensions Dimension C Imperial Mounting
52.000 in | 1320.93 mm
Dimensions Dimension C Metric Mounting H7
220.00 mm
Dimensions Dimension C Tolerance Imperial Mounting
+0.00 mm | -0.08 mm | +0.000 in | -0.003 in
Dimensions Dimension D
52-1/8 in | 1324.0 mm
Dimensions Dimension E Ductile Slotted Center Plate
22.03 in | 559.56 mm
Dimensions Dimension E Ventilated Center Plate
20.88 in | 530.35 mm
Dimensions Hole Circle B Metric Mounting
1540.0 mm
Dimensions Maximum Bore Range
14.50 in | 368.3 mm
Dimensions Minimum Bore Range
10.00 in | 254.0 mm
Dimensions Quantity Imperial Mounting
24
Dimensions Quantity Metric Mounting
24
Features Features
Available in hydraulic or pneumatic releaseHigh cycle lifePredictable preventative maintenanceSolid, slotted, or ventilated center plate optionsAvailable with Full Marine Corrosion Protection packageCompatible with the Power Performance LI upgradeType approval certification available: DNV, ABS, ATEX
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.Shipped without backplate.
Specifications Lining Area
6000 in² | 39000 cm²
Specifications Maximum Slip Speed
512 rpm
Specifications Maximum Speed Hub And Center Plate Cp
710 rpm
Specifications Note For Static Torque Rating At Minimum Release
Dynamic (slipping) Torque is 75% of the Static Torque.
Specifications Static Torque Rating At 60 Pound Force Per Square
2510000 lbf·in | 284000 N·m
Specifications Static Torque Rating At 75 Pound Force Per Square
3140000 lbf·in | 355000 N·m
Specifications Static Torque Rating At 90 Pound Force Per Square
3770000 lbf·in | 426000 N·m
Weight And Inertia Hub And Center Plate Cp Inertia
2800 lb·ft² | 120 kg·m²
Weight And Inertia Hub And Center Plate Cp Weight
2200 lb | 1000 kg
Weight And Inertia Total Weight
8300 lb | 3700 kg
