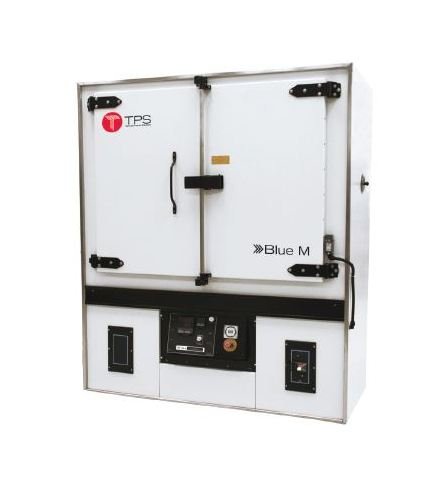

The Blue M ASTM Testing Mechanical Convection Oven is ideal for a number of industrial oven applications, including ASTM testing, epoxy curing, moisture drying, UL testing, aging of electronic components and devices, and other processes and testing requirements.
Product Specifications
Specifications Ac Voltage At 1 Phase
208 V | 240 V
Specifications Ac Voltage At 3 Phase
208 V | 240 V | 480 V
Specifications Ambient Temperature
343 ºC | 650 ºF
Specifications Engineered Oven Options
Additional lead-in ports | All stainless steel exterior construction | Interior light | Rear access door(s) | Redundant over-temperature protection | Space-saving stack oven design | Special control systems
Specifications Exterior Depth
36 in | 914 mm
Specifications Exterior Height
62 in | 1575 mm
Specifications Exterior Width
58 in | 1473 mm
Specifications Frequency
50 Hz | 60 Hz
Specifications General Mechanical Convection Industrial Oven Spe
Temperature Range: 15°C above ambient to 343°C (650°F) | Uniformity: ± 1% of set point | Control Accuracy: +0.5°C | Resolution: ± 0.1°C | Performance data (typical): Run-up to 300°C 60 min. (or less)
Specifications Interior Depth
20 in | 508 mm
Specifications Interior Height
25 in | 635 mm
Specifications Interior Volume
11 ft³
Specifications Interior Width
38 in | 965 mm
Specifications Line Current Per Phase At 208 Volts V 1 Phase
33 A
Specifications Line Current Per Phase At 208 Volts V 3 Phase
40 A
Specifications Line Current Per Phase At 240 Volts V 1 Phase
35 A
Specifications Line Current Per Phase At 240 Volts V 3 Phase
46 A
Specifications Line Current Per Phase At 480 Volts V 3 Phase
23 A
Specifications Machine Footprint
15 ft²
Specifications Oven Type
Floor Model
Specifications Rated Power At 208 Volts V 1 Phase
6 kW
Specifications Rated Power At 208 Volts V 3 Phase
13.5 kW
Specifications Rated Power At 240 Volts V 1 Phase
8 kW
Specifications Rated Power At 240 Volts V 3 Phase
18 kW
Specifications Rated Power At 480 Volts V 3 Phase
18 kW
Specifications Standard Oven Options
24-hour, 7-day digital process timer | Casters | Circular chart recorder | Comm-Link RS-485 to RS-232 converter | Door switch | Floorstands | Glass observation panel(s) | Nickel-plated wire rod or stainless steel | Reverse door hinge | slotted shelves
Specifications Temperature
15 ºC
Specifications Temperature Control
Available with profiling or single setpoint temperature controls. | Blue M one-pass air flow controls your profile, including cool down with infinitely variable control from full recirculation to full one pass, and optional motorized damper for automatic operation. | Direct drive blower multi-blade centrifugal blower with high-volume air delivery, dynamically balanced for minimum noise. | Double plenum design with removable doors for thorough inner chamber cleaning. | Exclusive Blue M Eterna heating elements - the most reliable available, with heavy-gauge high-temperature nickel chromium wire, low-watt density for longer service life, standard air flow switch on three-phase models to protect oven and product, and premium alumina ceramic element insulators. | Horizontal air flow assures uniform thermal performance under all loading conditions.
