137 Series Multi-Size Pneumatic Sealing Plumber Style Rubber Test Plug
137 Series Multi-Size Pneumatic Sealing Plumber Style Rubber Test Plug
SKU:POW-e7b24b
Versatile rubber test plug for residential and commercial plumbing systems, ensuring easy and secure testing procedures.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
137 Series Multi-Size Pneumatic Sealing Plumber Style Rubber Test Plug
$29.99
Quantity: 1
Claim Your Seller Account
137 Series Multi-Size Pneumatic Sealing Plumber Style Rubber Test Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 137 Series Multi-Size Pneumatic Sealing Plumber Style Rubber Test Plug is designed for testing plumbing systems in residential and commercial buildings. Crafted from special Styrene-butadiene rubber (SBR), these plugs offer durability and versatility with a maximum pipe diameter of 4 inches. Featuring tire inflation valves and various threaded end options, these plugs ensure easy and secure testing procedures. The plugs comply with industry standards for pipe testing and are suitable for a range of pipe diameters, making them essential for efficient plumbing system evaluations.
Product Specifications
Bore Range Bore Range Adapter
15.00 in | 355.6 mm
Bore Range Bore Range Clutch
15.00 in | 381.0 mm

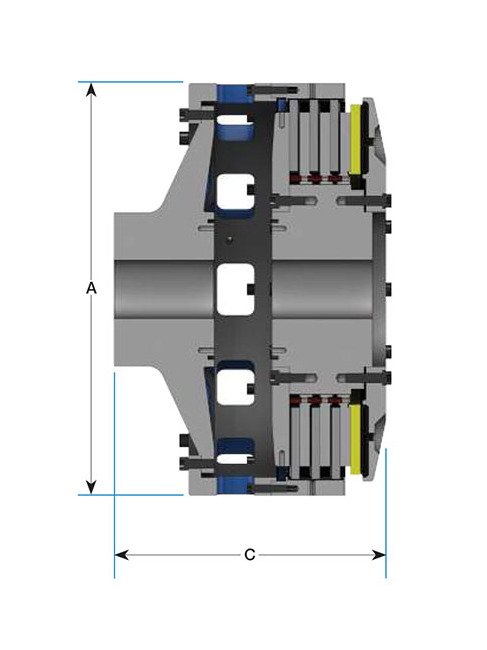

Dimensions Dimension A
66-3/4 in | 1695.5 mm
Dimensions Dimension C
43-3/4 in | 1111.3 mm
Features Features

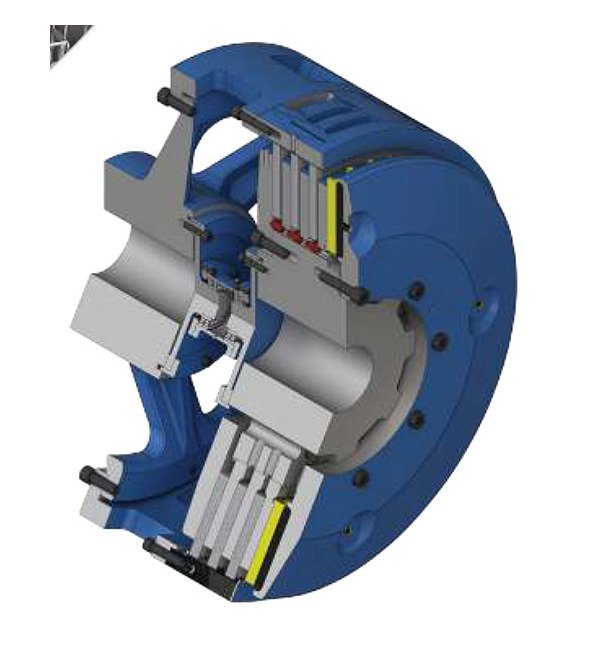

Reduces peak power demand for high load startsDisc design provide more torque capacity and lining area than drum style productsSuitable for jogging and inchingAvailable with axial locking deviceQuick-change Driving adapters for serviceability
Maximum Speed Maximum Slip Speed
380 rpm
Maximum Speed Maximum Speed
525 rpm
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.
Specifications Lining Area
11700 in² | 75500 cm²
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
8320000 lbf.in | 940000 N·m
Weight And Inertia Ring Fd And Qc Adapter Inertia
29300 lb·ft² | 1230 kg·m²
Weight And Inertia Ring Fd And Qc Adapter Weight
6490 lb | 2940 kg
Weight And Inertia Total Inertia
51700 lb·ft² | 2170 kg·m²
Weight And Inertia Total Weight
14700 lb | 6670 kg
