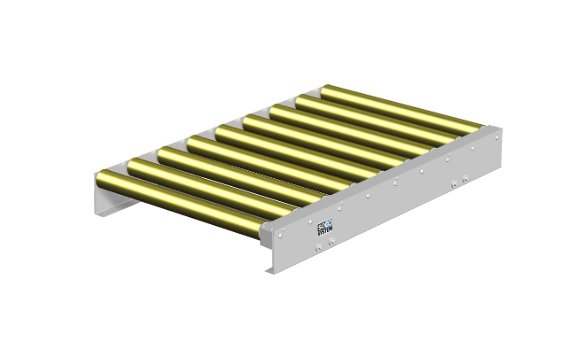

1370mm Width Coupled Sections Driven Pallet Conveyor
1370mm Width Coupled Sections Driven Pallet Conveyor
SKU:PAC-d768d2
Reliable 1370mm Width Pallet Conveyor for efficient packaging handling. Durable with 1,500 kg load capacity per pallet. Contact for custom solutions.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
1370mm Width Coupled Sections Driven Pallet Conveyor
$2,599.99
Quantity: 1
Claim Your Seller Account
1370mm Width Coupled Sections Driven Pallet Conveyor
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1370mm Width Coupled Sections Driven Pallet Conveyor from SOCO is a robust solution designed for pallet handling in packaging environments. It features a durable construction with electro galvanized steel components and a maximum payload capacity of 1,500 kg per pallet and motor unit. The conveyor's chain drive system, with hardened steel sprockets, ensures reliable operation and smooth pallet movement. With a 89mm roller pitch and 190mm height, this conveyor is suitable for various pallet shapes and sizes, providing efficient and seamless conveying. Contact SOCO SYSTEM for customized solutions to meet specific operational requirements.
Product Specifications
Dimensions Length
250 mm
Dimensions Width
1370 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
89 mm
Specifications Standard Total Height From Floor To Top Of Roller
90 mm
