1370mm Width Roller Pallet Conveyor
1370mm Width Roller Pallet Conveyor
SKU:PAC-3ab2c4
Efficient and reliable 1370mm Width Roller Pallet Conveyor for secure pallet handling. Electro galvanized steel construction, 80mm rollers, and 1,500kg payload capacity.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
1370mm Width Roller Pallet Conveyor
$2,799.99
Quantity: 1
Claim Your Seller Account
1370mm Width Roller Pallet Conveyor
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

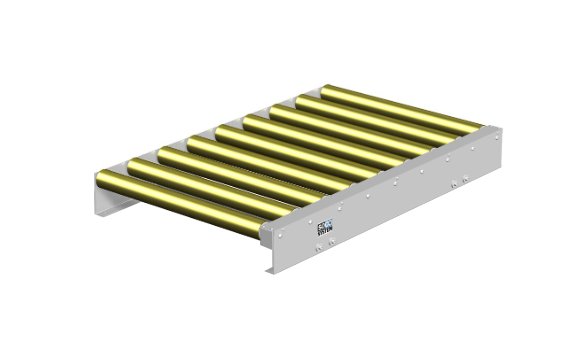

The 1370mm Width Roller Pallet Conveyor is a robust solution for efficient pallet handling. Featuring electro galvanized steel construction, 80mm conveying rollers, and a payload capacity of up to 1,500kg per pallet and motor unit, this conveyor ensures smooth and secure transport. The chain drive system with hardened steel sprockets and U-profile chain cover adds durability and safety. With a standard height of 90mm and adaptable design, this conveyor meets the demands of various industries, providing reliability and performance.
Product Specifications
Dimensions Length
500 mm
Dimensions Width
1370 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
89 mm
Specifications Standard Total Height From Floor To Top Of Roller
90 mm
