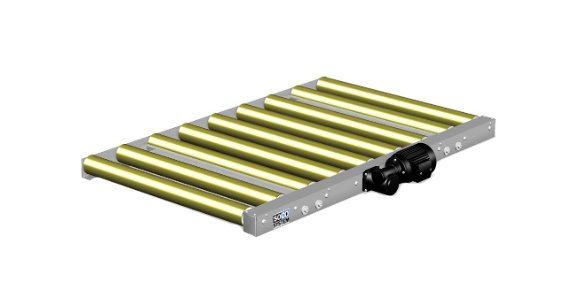

1370mm x 2000mm Driven Pallet Roller Conveyor
1370mm x 2000mm Driven Pallet Roller Conveyor
SKU:PAC-71c37a
Efficiently handle up to 1500 kg with the 1370mm x 2000mm Driven Pallet Roller Conveyor. Ideal for packaging facilities & warehouses.
Regular price
$3,499.00
Regular price
Sale price
$3,499.00
Unit price
per
Initiate Order
1370mm x 2000mm Driven Pallet Roller Conveyor
$3,499.00
Quantity: 1
Claim Your Seller Account
1370mm x 2000mm Driven Pallet Roller Conveyor
$3,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1370mm x 2000mm Driven Pallet Roller Conveyor is a robust solution designed for efficient material handling. With a sturdy frame of cold-bend angle profiles and electro-galvanized steel rollers, this conveyor can handle loads of up to 1500 kg per pallet and motor unit. The chain drive system with hardened steel sprockets ensures smooth operation at a speed of 11.4 m/min. Suitable for packaging facilities and warehouses, this conveyor offers reliability and performance. Contact SOCO SYSTEM for customization options.
Product Specifications
Dimensions Length
2000 mm
Dimensions Width
1370 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Gear Motor
0.37 kW
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
178 mm
Specifications Speed
11.4 m/min
Specifications Standard Total Height From Floor To Top Of Roller
90 mm
