1370mm x 2000mm Driven Pallet Roller Conveyor

Name: 1370mm x 2000mm Driven Pallet Roller Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-007505
Price: 2899.99 USD
Availability: OutOfStock

SKU:PAC-007505

Efficient and durable pallet roller conveyor for heavy loads, featuring electro galvanized steel construction and chain drive system.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

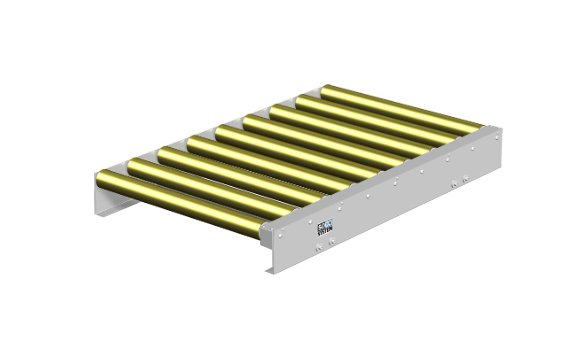

The 1370mm x 2000mm Driven Pallet Roller Conveyor from SOCO is a robust and versatile solution for pallet handling, designed for up to 1,500 kg load per pallet and motor unit. Its electro galvanized steel construction ensures durability, while the chain drive system with hardened steel sprockets allows smooth and efficient operation. With a standard height of 90mm from the floor to the top of rollers, this conveyor is suitable for various industrial applications, meeting the highest standards of quality and performance.

Product Specifications

Dimensions Length

2000 mm

Dimensions Width

1370 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

178 mm

Specifications Standard Total Height From Floor To Top Of Roller

90 mm
