13A-2 Circuit Board Support for .062" PCB and .125" Chassis
13A-2 Circuit Board Support for .062" PCB and .125" Chassis
SKU:01C-a080e3
Securely mount .062" PCBs & .125" Chassis with 13A-2 Circuit Board Support. Snap-fit design, Nylon 66 material, ASTM & RoHS compliant.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
13A-2 Circuit Board Support for .062" PCB and .125" Chassis
$25.99
Quantity: 1
Claim Your Seller Account
13A-2 Circuit Board Support for .062" PCB and .125" Chassis
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

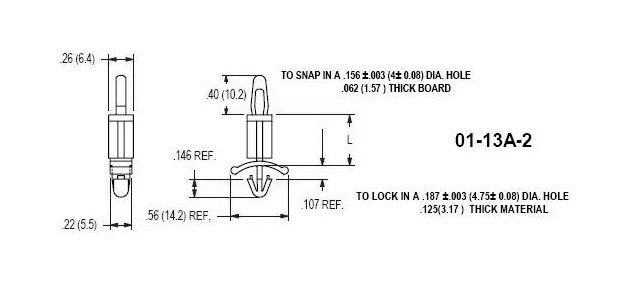

The 13A-2 Series Circuit Board Support is designed for secure mounting of .062-inch thick PCBs and .125-inch thick chassis. Featuring a snap-fit mechanism for easy installation on PCBs and locking into chassis, this support component ensures stability and durability. Made from Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066 and PA111 standards, and is RoHS compliant. With a temperature range of -40 to 185°F (-40 to 85°C), this support is ideal for a variety of applications in electronic assemblies.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
.500 (12.7) inches (mm)
