13A-2 Series Circuit Board Support
13A-2 Series Circuit Board Support
SKU:01C-fa6566
13A-2 Series Circuit Board Support for .062" PCBs & .125" chassis. Snap-fit & lock mechanism, Nylon 66 UL94V-2, RoHS compliant, -40 to 185F.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
13A-2 Series Circuit Board Support
$24.99
Quantity: 1
Claim Your Seller Account
13A-2 Series Circuit Board Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

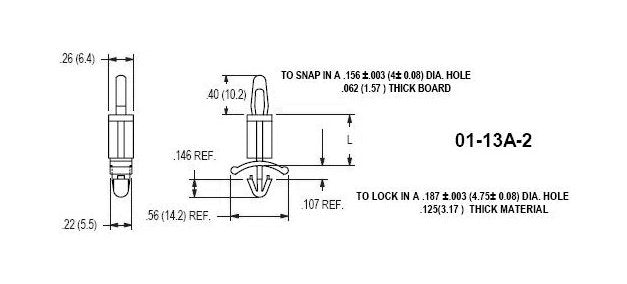

The 13A-2 Series Circuit Board Support is a high-quality PCB support designed for .062-inch thick PCBs and .125-inch thick chassis. Featuring a non-locking top for easy installation, this support securely snaps into the PCB and locks into the chassis, providing reliable circuit board stability. Made of durable Nylon 66 UL94V-2 material (also available in UL94V-0 upon request), this support meets ASTM D 4066 and PA111 standards, ensuring safety and performance. RoHS compliant and capable of operating in temperatures ranging from -40 to 185F (-40 to 85C), it is suitable for a wide range of applications.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
.187 (4.8) inches (mm)
