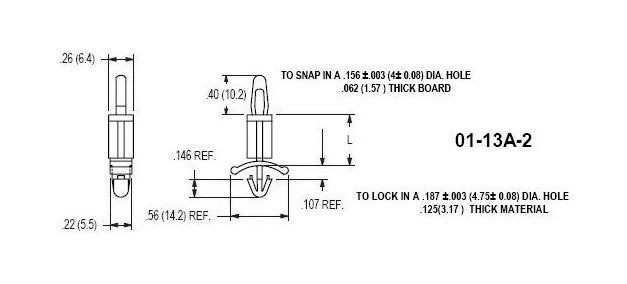

The 13A-2 Series Circuit Board Support is designed for .062-inch thick PCBs and .125-inch thick chassis. It features a non-locking top for easy installation and optimum support. Constructed from Nylon 66 UL94V-2 material, this support is robust and RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), this support ensures stability in various environments. Snap fit it into the PCB and lock it into the chassis for a secure assembly. ASTM D 4066 and PA111 compliant, this support meets high industry standards for durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
.250 (6.4) inches (mm)
