13A-2 Series Circuit Board Support Kit
13A-2 Series Circuit Board Support Kit
SKU:01C-cd565b
Durable circuit board supports for .062 PCB and .125 chassis, non-locking top, RoHS compliant, pack of 500.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
13A-2 Series Circuit Board Support Kit
$49.99
Quantity: 1
Claim Your Seller Account
13A-2 Series Circuit Board Support Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

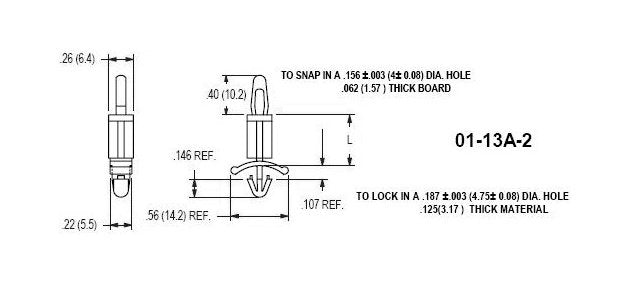

The 13A-2 Series Circuit Board Support Kit is designed for .062 thick PCBs and .125 thick chassis applications. These supports feature a non-locking top for easy installation and maintenance. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet ASTM D 4066, PA111, and are RoHS compliant. They have a temperature range of -40 to 185F (-40 to 85C), ensuring durability in various environments. Each kit includes 500 supports for bulk use, ensuring cost-effectiveness and convenience for large-scale projects.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
.375 (9.5) inches (mm)
