13A-2 Series Circuit Board Supports
13A-2 Series Circuit Board Supports
SKU:01C-d1a62a
Securely mount circuit boards with 13A-2 Series supports for .062in PCBs & .125in chassis. Snap-fit on PCBs & lock into chassis. Durable Nylon 66 material with wide temp range. Pack of 500 supports, ASTM & RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13A-2 Series Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
13A-2 Series Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

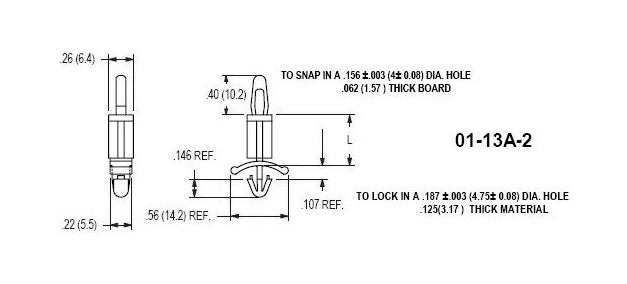

The 13A-2 Series Circuit Board Supports are specifically designed for .062-inch thick PCBs and .125-inch thick chassis, ensuring secure mounting in electronic assemblies. Featuring a snap-fit mechanism for easy installation on PCBs and locking into chassis for stability, these supports are made of durable Nylon 66 UL94V-2 material (UL94V-0 available). With a temperature range of -40 to 185F (-40 to 85C), they offer reliable performance in varied environments. Each pack contains 500 supports, meeting ASTM D 4066 and PA111 standards, and are RoHS compliant, promoting environmental sustainability in electronics manufacturing.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
.875 (22.2) inches (mm)
