13A-2 Series Circuit Board Supports
13A-2 Series Circuit Board Supports
SKU:01C-c7fef4
Secure your PCB and chassis with durable, RoHS-compliant 13A-2 Series supports. Easy snap-fit installation and reliable locking mechanism.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13A-2 Series Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
13A-2 Series Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

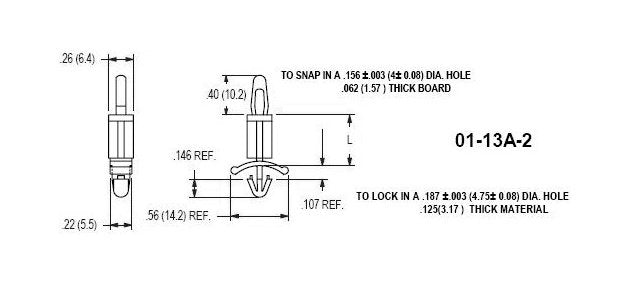

The 13A-2 Series Circuit Board Supports are designed for .062 thick PCBs and .125 thick chassis, featuring a non-locking top for easy installation. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports snap fit securely into the PCB and lock into the chassis, providing reliable stability. With a temperature range of -40 to 185F (-40 to 85C), these supports are RoHS compliant, ensuring environmental friendliness. Measuring 1.00 inch (25.4mm) in length, these supports offer precise dimensions to meet your installation requirements.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
1.00 (25.4) inches (mm)
