13A-2 Series Nylon Circuit Board Supports
13A-2 Series Nylon Circuit Board Supports
SKU:01C-3c70d3
Durable 13A-2 Series Nylon Circuit Board Supports for .062in PCB, .125in Chassis. RoHS compliant, ideal for secure snap-fit installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
13A-2 Series Nylon Circuit Board Supports
$24.99
Quantity: 1
Claim Your Seller Account
13A-2 Series Nylon Circuit Board Supports
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

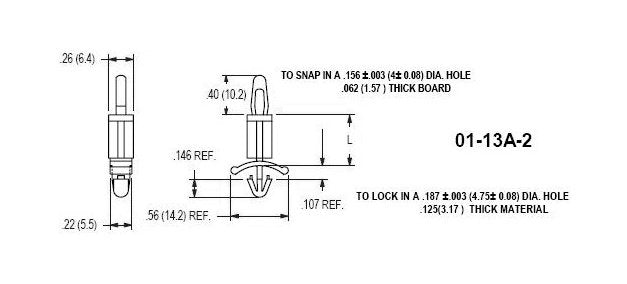

The 13A-2 Series Circuit Board Supports are expertly designed for compatibility with .062-inch thick PCBs and .125-inch thick chassis. These supports feature a non-locking top for easy installation and maintenance. Constructed from Nylon 66 UL94V-2 material, these supports meet strict quality standards and are RoHS compliant, ensuring environmental responsibility. With a temperature range of -40 to 185F (-40 to 85C), these supports offer reliable performance in diverse conditions. Snap fit into PCB effortlessly and lock securely into the chassis for stability and durability.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
1.12 (28.6) inches (mm)
