13A-2 Series PCB Support - .062 Board/ .125 Chassis - Non-Locking Top

Name: 13A-2 Series PCB Support - .062 Board/ .125 Chassis - Non-Locking Top
Brand: All Electronics Hardware
SKU: 01C-2af989
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-2af989

Securely mount .062 PCBs onto .125 chassis with the 13A-2 Series PCB Support. Snap-fit installation, ASTM & RoHS compliant, ideal for electronic assemblies.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

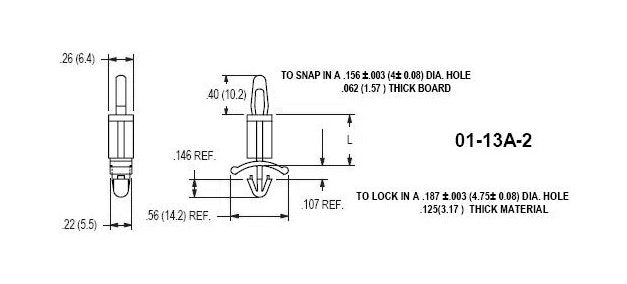

The 13A-2 Series PCB Support is engineered for secure mounting of .062 thick PCBs onto .125 thick chassis with a non-locking top design. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this component offers snap fit installation into PCBs and locks firmly into chassis. With ASTM and RoHS compliance, it withstands temperatures from -40 to 185F (-40 to 85C), providing reliability in diverse environments. Each pack includes 500 supports for efficient procurement and deployment, ensuring seamless integration into electronic assemblies.

Product Specifications

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Thickness

.125 (3.17) inches (mm)

Specifications Dim L 015

.437 (11.1) inches (mm)
