13A-2 Series PCB Support - .062 Brd Thk, .125 Chassis Thk
13A-2 Series PCB Support - .062 Brd Thk, .125 Chassis Thk
SKU:01C-205d4b
Securely mount PCBs with the 13A-2 Series - Snap Fit design, Nylon 66 material, ASTM & RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
13A-2 Series PCB Support - .062 Brd Thk, .125 Chassis Thk
$24.99
Quantity: 1
Claim Your Seller Account
13A-2 Series PCB Support - .062 Brd Thk, .125 Chassis Thk
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

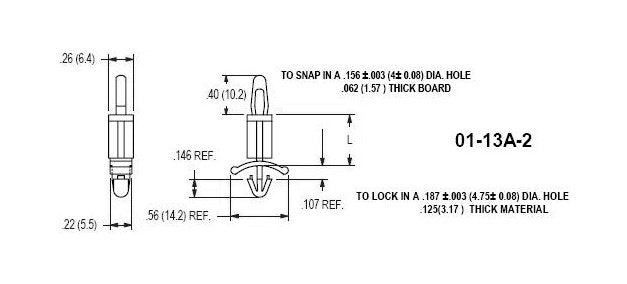

The 13A-2 Series PCB Support is designed for .062-inch thick PCBs and .125-inch thick Chassis. Featuring a Snap Fit design for easy installation on PCBs and locking into Chassis, this support provides secure mounting. Made from Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066, PA111, and RoHS standards, ensuring durability and safety. With a temperature range of -40 to 185F (-40 to 85C), this support is reliable in various environments.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
.625 (15.9) inches (mm)
