13A-2 Series PCB Support for .062 Thick PCB & .125 Thick Chassis

Name: 13A-2 Series PCB Support for .062 Thick PCB & .125 Thick Chassis
Brand: All Electronics Hardware
SKU: 01C-4bcafd
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-4bcafd

Durable 13A-2 Series PCB Support for .062 Thick PCB, .125 Thick Chassis. Snap fit into PCBs and lock into chassis for secure assembly. ASTM & RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 13A-2 Series PCB Support is designed for .062 thick PCBs and .125 thick chassis, offering sturdy support and secure locking mechanisms. Crafted from Nylon 66 UL94V-2 material (UL94V-0 available), these supports are ASTM and RoHS compliant, ensuring quality and safety in electronic assemblies. Snap fit into PCBs and lock into chassis effortlessly. With a temperature range of -40 to 185F (-40 to 85C), these supports provide reliability in various environments.

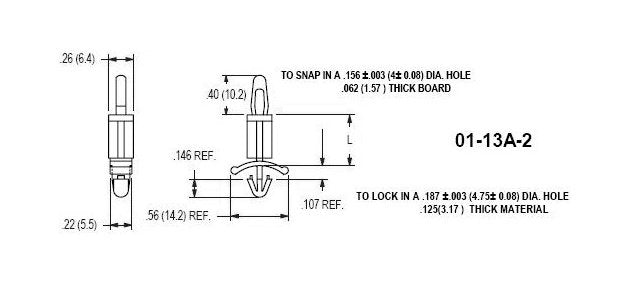

Product Specifications

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Thickness

.125 (3.17) inches (mm)

Specifications Dim L 015

.750 (19.1) inches (mm)

13A-2 Series PCB Support for .062 Thick PCB & .125 Thick Chassis
