13A-2 Series PCB Support Kit
13A-2 Series PCB Support Kit
SKU:01C-74aa17
Secure and reliable PCB Support Kit for .062 Thick PCBs & .125 Thick Chassis. Snap Fit design, RoHS compliant, temp range -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13A-2 Series PCB Support Kit
$29.99
Quantity: 1
Claim Your Seller Account
13A-2 Series PCB Support Kit
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

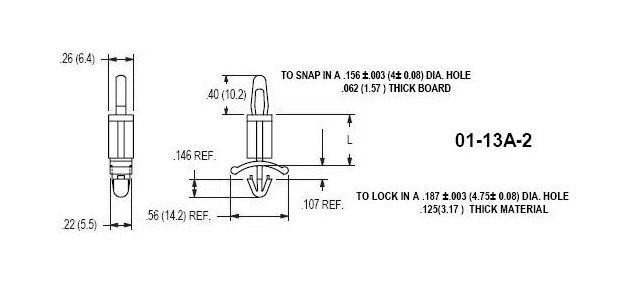

The 13A-2 Series PCB Support Kit caters to .062 Thick PCBs and .125 Thick Chassis, ensuring secure positioning and stability. These supports feature a Snap Fit design for PCBs and a locking mechanism for Chassis mounting, providing reliability in demanding applications. Crafted from Nylon 66 UL94V-2 material (with UL94V-0 option available), these supports meet ASTM D 4066, PA111 standards and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), they guarantee performance in diverse environments.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
1.38 (34.9) inches (mm)
