13A Series Circuit Board Support
13A Series Circuit Board Support
SKU:01C-903dfb
Durable and secure circuit board support for .062" thick PCB and chassis. RoHS compliant, suitable for wide temperature range.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
13A Series Circuit Board Support
$24.99
Quantity: 1
Claim Your Seller Account
13A Series Circuit Board Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

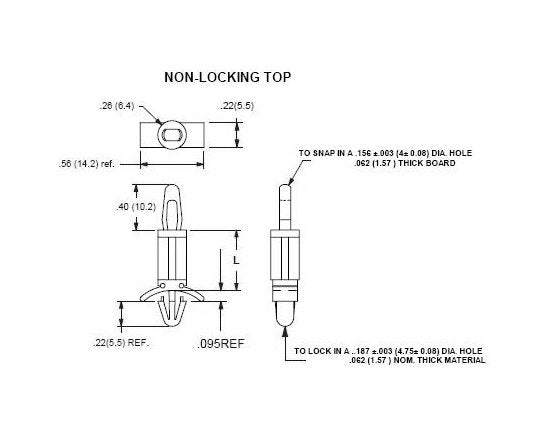

The 13A Series Circuit Board Support is designed for .062 inches thick PCB and chassis, offering secure snap-fit installation into PCBs and locking capability in chassis. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this support meets ASTM D4066 and PA111 standards, ensuring reliability. RoHS compliant and with a temperature range of -40 to 185F, this support is suitable for various applications requiring durability and stability.
Product Specifications
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Chassis Thickness
.062 (1.57) inches (mm)
Specifications Dim L 015
.875 (22.2) inches (mm)
